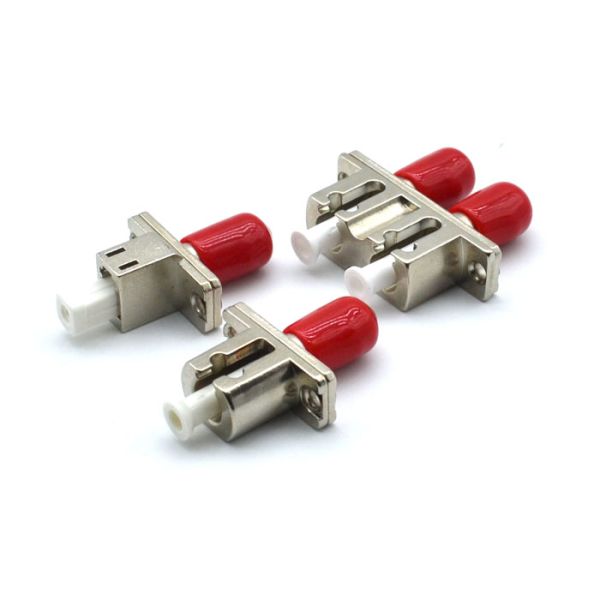

Flange Fixed Fiber Optic Attenuator LC-ST SM MM SX DX 0-30dB IEC Standard

Brand Name : CLX

Model Number : LC-ST Flange Attenuator

Certification : ROHS,CE

Place of Origin : Guangdong,China

MOQ : 10 Piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000 Piece/Day

Delivery Time : 5-8 work days

Packaging Details : Plastic box + carton / customized

Attenuation Value : 0-30dB

Housing Material : Metal and Plastic

Sleeve material : Zirconia

Standard : GR-910-Core and YD/T 894.1-2010

Use : Optical Connector Converter, FTTH

Contact Now

FC-ST SM MM SX DX Flange Fiber Optical Attenuator

Place of Origin:Guangdong,China

Description

Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, and Variable fiber optic attenuators.

Flange Fixed Fiber Optic Attenuator LC-ST SM MM SX DX 0-30dB IEC Standard

Feature

Good reproducibility and compatibility

Accurate attenuation value

High reliability

Compliant with IEC standard and Rohs

Compliant with Telcordia-GR-910-CORE

Flange Fixed Fiber Optic Attenuator LC-ST SM MM SX DX 0-30dB IEC Standard

Specifications

Item	Specification
	SM	MM
Test wavelength	1310&1550nm	1300&850nm
Return loss	UPC≥50dB, APC≥60dB	≥35dB
Operating wavelength	1260-1650nm
Attenuation range	0-30dB
Tolerance of attenuation	0-5dB:±0.5dB
	5-30dB:±10%
Repeatability	≤0.1dB
Interchange	≤0.2dB
Mechanical durability	≤0.2dB (1000 times)
Optical power	≤200mw

Ordering Information: AT-A-B-C-D-E-F-G

AT-	A	B	C	D	E	F	G
Attenuator	LP=LC/UPC	M= Male F= Female	LP=LC/UPC	M= Male F= Female	SM= Single Mode MM= Multi mode	1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB	31= 1310nm 55= 1550nm 85= 850nm 30= 1300nm
	LA=LC/APC		LA=LC/APC
	FP=FC/UPC		FP=FC/UPC
	FA=FC/APC		FA=FC/APC
	SP=SC/UPC		SP=SC/UPC
	SA=SC/APC		SA=SC/APC
	ST=ST/UPC		ST=ST/UPC
	MU=MU/UPC		MU=MU/UPC

For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator

Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)

Flange Fixed Fiber Optic Attenuator LC-ST SM MM SX DX 0-30dB IEC Standard
